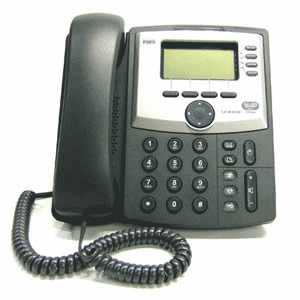

Teliphone™ is a
state-of-the-art IP desktop phone incorporating ergonomic
design, ease-of-use functionality, and the full power of IP
telephony on the desktop. All delivered at an affordable price.
Teliphone in the office means cost savings since the caller can
select either IP network or the PSTN, whichever is the least
cost for each call.
Interoperable
with IP and PSTN networks
Teliphone works with your
existing network and systems. Teliphone’s built-in dual port
Ethernet hub can be used to connect the PC and IP phone on the
same 10/100 base-T LAN, reducing wiring costs and complexity.
Adds, moves and changes are simple in a Teliphone-equipped
environment.
Teliphone also
has a PSTN port, allowing you to dial out on the telephone
network as well as on the IP network.
Standards-based
Teliphone interoperates with any
standards-compliant VoIP gateways and PBXs. For new
installations, Teliphone works with Telimax, Teliann’s IP
gateway, to offer a complete, cost-effective IP telephony
solution.
Full-featured
telephone
Teliphone is a full-featured
communication station with speakerphone, caller ID, and other
telephone functions found in advanced phones. Its large LCD
gives you the status display in easy to read format in context
of the current operation. Intuitive menus allow easy
configuration and setup. Teliphone’s sleek, modern design will
accentuate any desktop.
FEATURES
• H.323 v3
Protocol / SIP v2 Protocol
• Operates in both POTS and IP phone modes
• Direct connection to the PSTN
• CO Line and KTS support
• Built-in 10/100 base-T LAN hub to connect a PC to the IP
network
• Easy to use, simple to activate
• 4X15 LCD display
• LCD Backlight support(Teliphone 3200-xx only)
• Speakerphone for VoIP call
• Microphone mute
• Volume control
• Three programmable speed dialing keys
• 100-number phone book
• 30-number Dial Replacement
• Last number redial
• Caller ID support for VoIP call
• Call Mute
• Incoming/outgoing call and Call timer log
• Multiple line appearance
• VAD (Voice Activity Detection)
• Silence suppression
• Fast Start
• Distinctive ring setting
• In band and out of band DTMF signaling
• Echo cancellation/compensation
• Excellent voice quality DSP technology
• Software updates/upgrades via remote access
• Interoperable with standards-based gatekeepers,gateways and
SIP proxy server/Registrar
• Handset hearing aid compatible
• Ergonomic handset
• Configurable phone number assignment to match dial plan
• Remote management via Telnet and HTTP
Dial-Up
Modem Features
• Data Rates from 300 bps to 56k bps
(If needed in use, the rate can be limited by software)
• Data Modulation Standards V.90, V.34, V.432bis, V.22bis,
V.22, V.23, V.21
and V.23 reversible (Minitel), Bell 212, Bell 103 Dial-Up Modem
V.42 Error Control
• V.42 Error Control
• V.42bis Compression
• Protected against surge and over voltage on the telephone
line
TECHNICAL SPECIFICATIONS
Standards
ITU H.323 v3, H.225, H.245, RTP/RTCP,RAS,
Q.931
NAT: Network Address Translation
PPPoE : Point-to-Point Protocol over Ethernet
TFTP: Trivial File Transfer Protocol
SNMP: Simple Network Management Protocol
HTTPD: Hypertext Transfer Protocol daemon
Telnet protocol
DHCP: Dynamic Host Configuration Protocol
ITU G.711 PCM,G.723.1,G.729A
ITU G.168(25ms) Echo cancellation
IEEE 802.3 10/100 base-T
Analog
Ports
One PSTN port; RJ-11 connector
Network
Ports
Dual 10/100 base-T Ethernet, Full duplex; RJ-45 connector
Management
Port
RS-232C, 9600 bps asynchronous; RJ-11 connector;
SNMP management
CODEC
Options
G.711,G.729A,G.723.1
Power
5VDC/2A
Certifications
UL, FCC(Part 15,Part 68)
Dimensions
5.5” W x 1.7” H x 6.9” D (14.0cm W × 4.3cm H × 17.5cm D)
Weight
1.6 lbs (0.73kg)
Operating
Temperature
32º F to 104º F (0º C to 40º C)
Operating
Humidity
10% to 85% noncondensing
Storage
Temperature
14º F to 140º F (-10º C to 60º C)
Storage
Humidity
5% to 90% noncondensing
ORDERING
INFORMATION
Broadband
Models
TP3200-V20 - Ethernet and PC Ports(Available only for Minimum
500units order)
TP3100-V21P - Ethernet and PC Ports,PSTN capability(Discontinued
production)
COMBO
Models (Broadband+Dial-Up)
TP3200-D21 - Ethernet, PC and Modem Ports, PSTN (Standard Model)
TP3100-D11P - Ethernet and Modem Ports, PSTN(Discontinued
production)
TP3100-D21P - Ethernet, PC and Modem Ports,PSTN(Discontinued
production)
|
